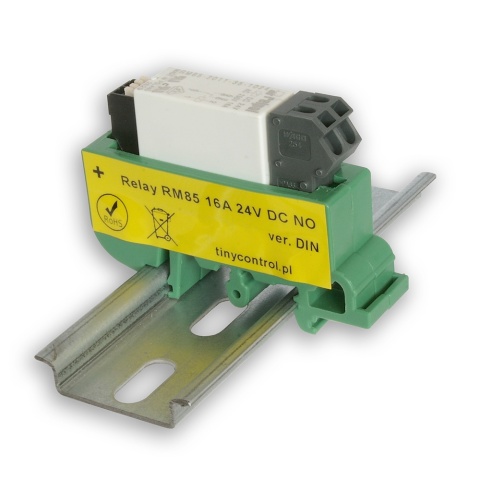

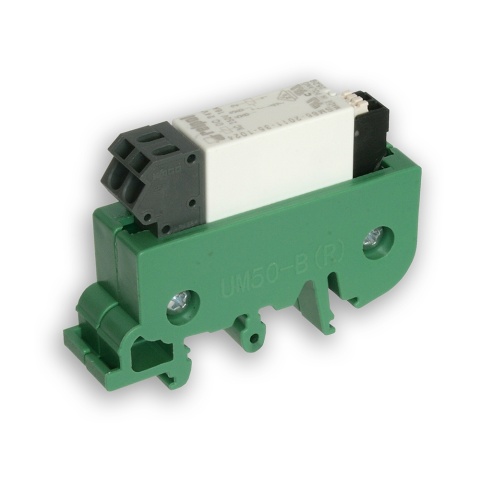

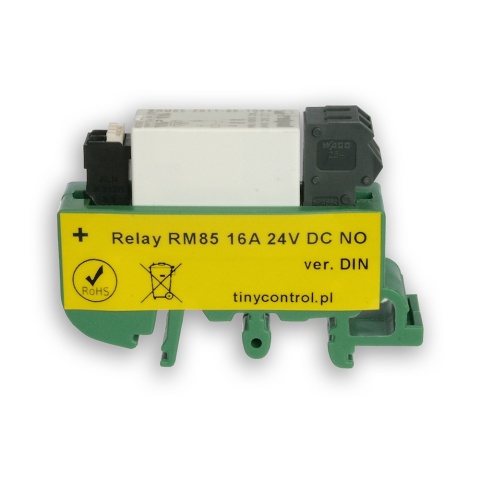

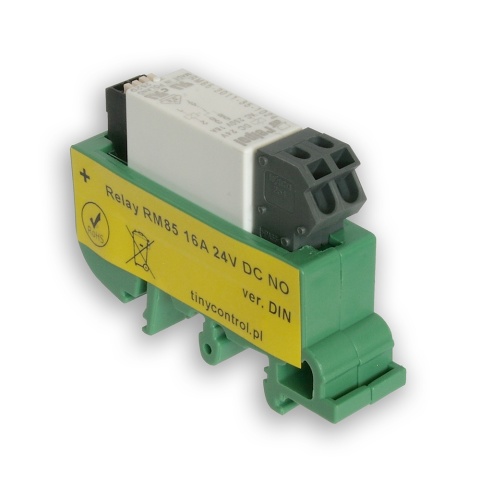

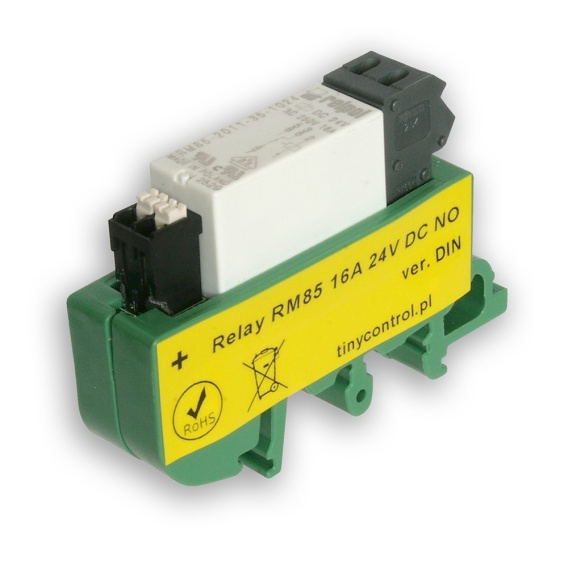

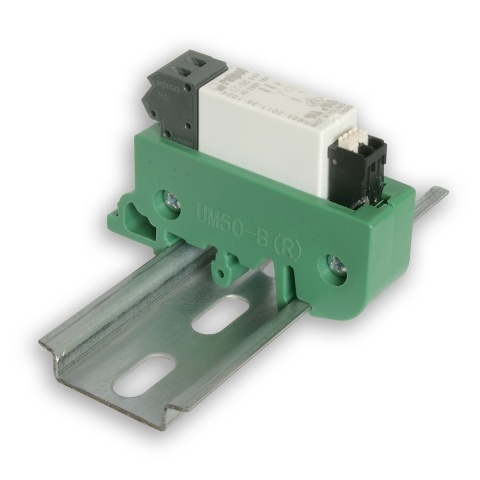

Relay board with RM85 relay 16 A, 24 V coil, with DIN rail mount
This board features a 16 A RM85 relay with a 24 V DC coil and a DIN rail mounting bracket. It contains one relay and WAGO self-locking connectors for quick and easy wiring. The relay has NO (Normally Open) and C (Common) contacts.
35.67
| Shipping within | 24 hours from the moment of positive payment authorization |
| Shipping price | Depends on the delivery location |
| Availability |
Few
|
| Leave your phone |
This board features a 16 A RM85 relay with a 24 V DC coil and a DIN rail mounting bracket.
It contains one relay and WAGO self-locking connectors for quick and easy wiring.
The relay has NO (Normally Open) and C (Common) contacts.
It is designed for use with Open Collector outputs in LK devices, among other things.
The high-quality RM85 relay from the Polish company Relpol is characterized by high shock resistance. The special contact design, which removes metal oxides with each switching operation, further extends trouble-free operation.
Technical specifications
| Coil control voltage | 24 V |
|---|---|
| Number of relays | 1 |
| Relay outputs | NO, C |
| Rated load current | 16 A / 250 V AC (AC-1) 16 A / 24 V DC (DC-1) AC-1/DC-1: non-inductive or low inductive loads, resistance furnaces |
| Contact resistance | < 100 mΩ |
| Supply voltage | 16 ÷ 28 V DC The controller's power supply voltage should be within this range. |
